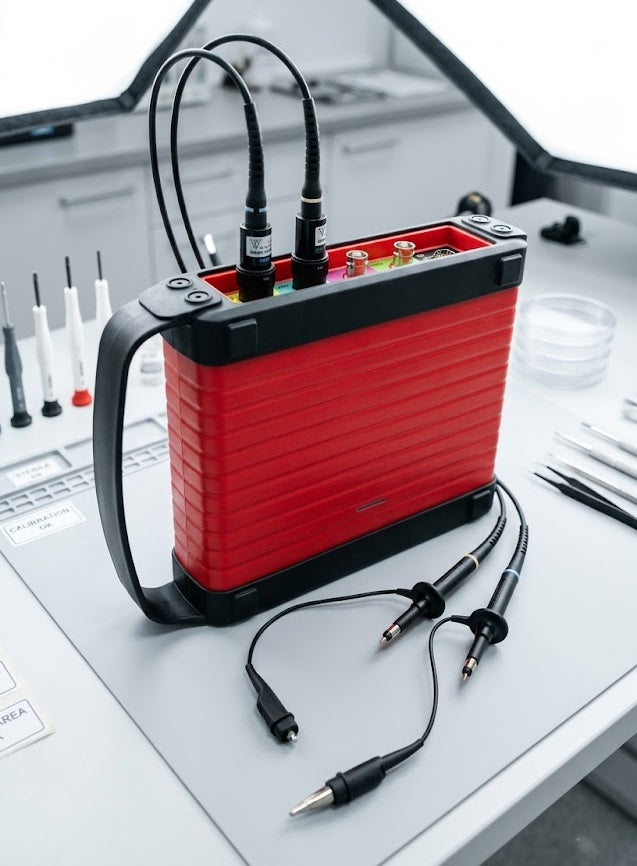

ThinkCar Scope BOX – 4-channel 100 MHz diagnostic oscilloscope

The ThinkCar Scope BOX is a high-end diagnostic oscilloscope designed for use with ThinkTool series devices. It allows for electrical signal measurements in passenger cars, commercial vehicles, and hybrids, supporting the diagnosis of sensors, ignition systems, communication buses, and actuators.

The device features 4 measurement channels, a 100 MHz bandwidth, a 1 GSa/s sampling rate, and a 50 Mpts record length. This configuration allows for precise observation of rapid signal changes, comparison of multiple circuits simultaneously, and analysis of faults that cannot be definitively detected by a diagnostic tester alone.

The ThinkCar Scope BOX is integrated with automotive-specific software. It enables ignition tests, sensor tests, activation tests, and bus decoding for various vehicles. This allows mechanics to move faster from error code reading to real signal analysis and problem cause confirmation.

The oscilloscope is ready to use out of the box and works best with devices from the THINKTOOL collection. It's a tool for workshops that want to elevate their electrical and electronic diagnostics, especially for issues with sensors, ignition, CAN/LIN communication, actuator control, and intermittent faults that only appear under specific operating conditions.

Technical data and product features comply with the description provided by ThinkCar Poland.

Key advantages

4 measurement channels allow for simultaneous analysis of multiple signals, which is particularly useful for comparing the operation of sensors, injectors, coils, or control signals.

100 MHz bandwidth and 1 GSa/s sampling enable precise observation of fast electrical waveforms.

50 Mpts record length allows for recording more data, making it easier to catch intermittent faults.

Automotive software supports ignition diagnostics, sensor tests, activation tests, and bus decoding.

Compatibility with gasoline, diesel, and hybrid vehicles increases the range of application in the workshop.

Ready-to-use out of the box reduces the time to deploy the device at the diagnostic station.

Workshop application

The ThinkCar Scope BOX is suitable for diagnosing crankshaft and camshaft position sensors, mass air flow sensors, oxygen sensors, pressure sensors, PWM signals, ignition coils, injectors, alternators, actuators, and communication buses. It is particularly useful when the diagnostic computer shows an error, but the list of fault codes alone is not sufficient to pinpoint the cause.

For a workshop, this means less guesswork, more accurate diagnostics, and greater control over repairs. The oscilloscope allows you to see the real signal waveform, not just the controller's interpretation.

Technical specifications

Number of channels: 4
Bandwidth: 100 MHz
Sampling rate: 1 GSa/s
Record length: 50 Mpts
Compatibility: gasoline, diesel, and hybrid vehicles
Special functions: ignition test, sensor test, activation test, bus decoding
Color: red with black
Hardware compatibility: THINKTOOL collection

Who is the ThinkCar Scope BOX for?

The ThinkCar Scope BOX will be a good choice for car workshops, auto electricians, diagnosticians, automotive electronics services, and companies that want to expand diagnostics beyond just reading errors, and are already working with Thinkcar devices compatible with this tool. It is a tool for those who want to really measure signals and quickly confirm faults in electrical and electronic systems.
