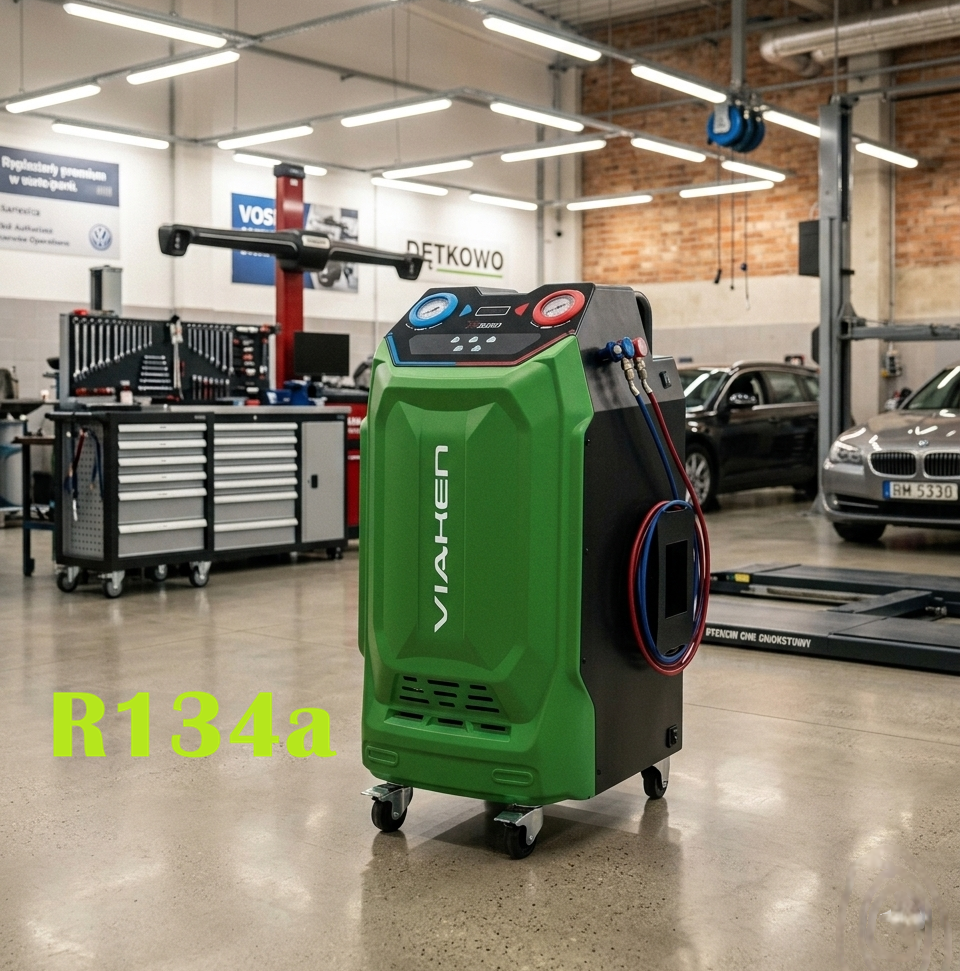

Viaken X520 Semi-Automatic Air Conditioning Service Station (R134a)

A professional solution for your workshop – precision, speed, and Polish reliability.

ATTENTION! MENU IN POLISH
Only original Viaken products have Polish language support

The Viaken X520 is an advanced, semi-automatic air conditioning station designed for professional car services, workshops, and vehicle service stations. The device allows for comprehensive servicing of air conditioning systems in passenger cars, trucks, as well as agricultural and construction machinery.

Thanks to the menu in Polish and intuitive controls, work becomes fast and error-free, and the robust construction guarantees trouble-free operation for years.

Why the Viaken X520?

• Semi-automatic operation mode: The ideal compromise between operator control and speed of operation. The station guides you through the recovery, vacuum, and filling processes.

• 100% Polish menu: The LCD display communicates with you in your native language – only original Viaken devices offer full Polish support.

• Solid construction that weighs: Unlike cheap, light alternatives (often below 40 kg), the Viaken station weighs 80 kg, which indicates the use of metal components and durable, high-quality pumps.

• Deep recovery and purity: Advanced deacidifying-dehydrating filters allow for the regeneration of recovered refrigerant and its reuse, which generates real savings.

Main Functions of the Device:

1. Refrigerant recovery: Effective extraction of refrigerant from the system.

2. Oil separation: Automatic separation of used oil from the refrigerant.

3. Vacuum creation: Effective drying of the system and removal of moisture.

4. Leak test: Basic leak check under vacuum.

5. Oil dispensing: Precise dispensing of new oil (button-operated).

6. System filling: Fast and accurate charging of R134a refrigerant into the vehicle.

What distinguishes the X520 model?

• Glycerine pressure gauges: Vibration-resistant, ensuring precise pressure readings even when the compressor is operating.

• LCD display: A clear panel providing information on each stage of operation.

• Transparent tanks: Quick view of new and used oil levels.

• Mobility: Robust wheels allow for easy movement of the station around the workshop.

• Scale lock: A special function protecting the scale during device transport.

Technical Specifications:

• Refrigerant type: R134a (optional R1234yf version)

• Power consumption: 700 W

• Recovery rate: 250 g/min

• Filling rate: 800 - 1200 g/min

• Vacuum pump efficiency: 5.4 m³/h

• Refrigerant tank capacity: 10 kg

• Scale accuracy: 10 g

• Filtering capacity: up to 200 kg of refrigerant

• Device weight: approx. 80 kg (net)

Included in the set:

• Viaken X520 main station unit.

• Set of service cables (HP/LP) with connectors.

• Power cable.

• User manual in Polish.

Elevate your service standards and start earning from AC service with proven Viaken equipment. Choose a station that won't let you down during peak season!
