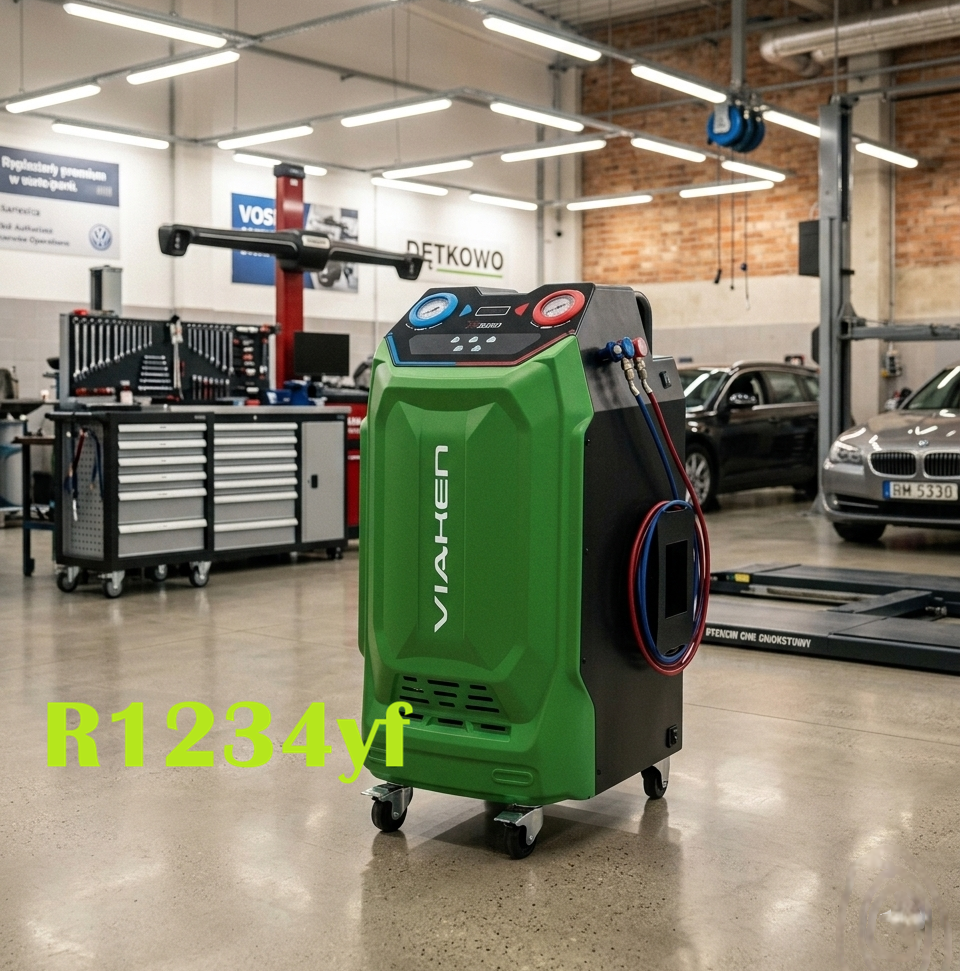

Viaken X520 Semi-Automatic Air Conditioning Station – New R1234yf Refrigerant

Be ready to service modern vehicles!

ATTENTION! MENU OPERATION IN POLISH
Only original Viaken has Polish language

The Viaken X520 in the R1234yf version is a professional air conditioning station designed specifically for handling the new refrigerant. In accordance with EU directives, most cars manufactured after 2017 require this type of refrigerant. With this device, you open your workshop to a wide range of owners of newer cars, providing them with full air conditioning service at the highest level.

The X520 model combines robust construction (weight 80 kg!) with intuitive operation in Polish, making it an indispensable tool in any modern service workshop.

Key advantages of the R1234yf version:

• New Refrigerant Service: Device equipped with appropriate connectors and components compatible with the ecological R1234yf refrigerant.

• Polish Language Version: Menu and operating instructions entirely in Polish, minimizing the risk of errors during work.

• Maximum Efficiency: Advanced vacuum pump with a capacity of 5.4 m³/h guarantees quick system drying and the highest purity of operation.

• Investment Security: Viaken is a proven brand with full service support and access to spare parts.

Key service process functions:

1. Recovery: Removing old refrigerant from the car's air conditioning system.

2. Purification: Filtration and de-acidification of recovered refrigerant for reuse.

3. Vacuum: Removing moisture and air contaminants from the system.

4. Leak test: Automatic leak control under vacuum.

5. Oil dosing: Precise replenishment of fresh oil in the system (manual operation via button).

6. Charging: Introducing the appropriate amount of R1234yf refrigerant according to vehicle manufacturer data.

Why choose the Viaken brand?

• Weight matters: The station weighs 80 kg. Unlike "off-the-shelf" stations, Viaken uses massive, metal components and a durable compressor, which translates into years of trouble-free operation.

• Precise Electronic Scale: Accuracy to 10g allows for economical management of expensive R1234yf refrigerant.

• Glycerin Gauges: High vibration resistance and precise HP and LP pressure readings.

• Mobile Design: Four wheels (including two swivel wheels with brakes) allow for free maneuvering of the device within the workshop.

Technical parameters:

• Refrigerant type: R1234yf

• Power supply voltage: 230V / 50Hz

• Compressor power: 3/8 HP

• Recovery rate: 250 g/min

• Charging rate: 800 - 1200 g/min

• Vacuum pump efficiency: 5.4 m³/h (120 l/min)

• Refrigerant cylinder capacity: 10 kg

• Net weight: 80 kg

• Dimensions: 500x490x1035 mm

Set contents:

• Viaken X520 semi-automatic station (R1234yf).

• HP/LP service hoses.

• Quick couplers for the new R1234yf refrigerant.

• Power cable.

• User manual in Polish.

Prepare your workshop for new technology. Invest in the Viaken X520 R1234yf station and gain a competitive advantage in the service market!
