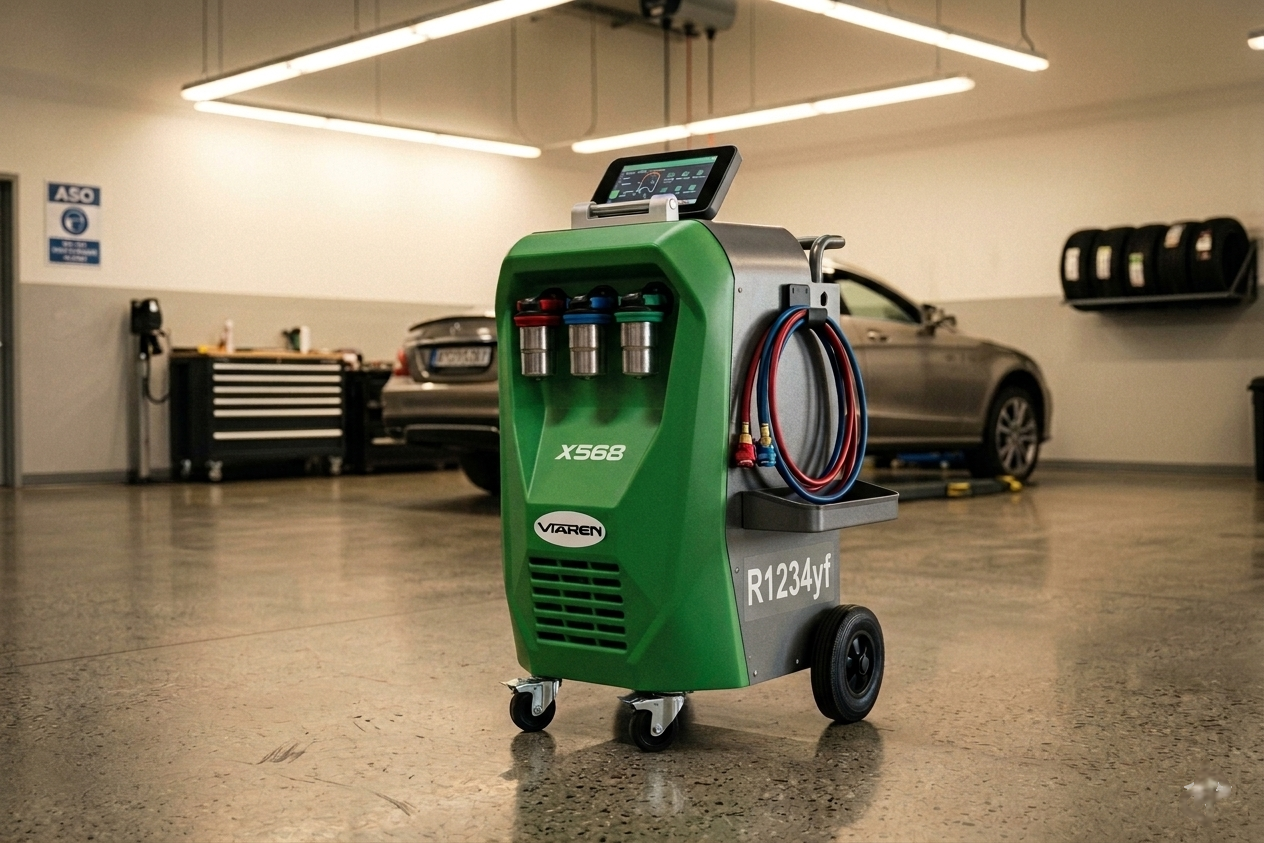

Viaken X568 Smart Air Conditioning Station – New R1234yf Refrigerant + Touch Screen

The future of AC service at your fingertips!

The Viaken X568 in the R1234yf version is the most advanced, fully automatic station in our offer. Designed for uncompromising precision and maximum working comfort when servicing modern vehicles (manufactured after 2017). Equipped with a large, color touch screen, it makes the service process as simple and intuitive as operating a modern smartphone.

If your workshop prioritizes professionalism, speed, and the latest technology, the X568 R1234yf model is the only right choice.

Why is the Viaken X568 R1234yf a Premium Class product?

• Modern Touch Interface: The color LCD display guides the operator through the entire process with clear graphics and messages – entirely in Polish.

• R1234yf Refrigerant Support: Full compatibility with the new, ecological refrigerant, requiring the highest dosing precision.

• Full "Start-to-Finish" Automation: After selecting the vehicle model from the database, the station independently performs recovery, regeneration, vacuuming, leak testing, and system filling with precise oil and UV dye injection.

• Built-in Printer and Database: Document every service. A printout report is proof of professionalism for your client, and an up-to-date database saves your time.

Advanced functionalities:

1. Intelligent sensor system: Automatically monitors the amount of recovered oil and dispenses exactly the same dose of fresh fluid, eliminating the risk of overfilling the system.

2. Precise electronic scale: Crucial for the expensive R1234yf refrigerant – the system weighs with gram accuracy, preventing financial losses.

3. Efficient filtration system: Multi-stage filters ensure that the recovered refrigerant is clean and ready for reuse, maximizing profits from each service.

4. Expert Mode: Allows manual setting of each parameter, which is indispensable for diagnosing unusual malfunctions or specialized machinery.

5.
   TOUCH SCREEN
   Large 10" color touch display with adjustable tilt angle and status light indicator, clear graphical menu and instructions displayed on the screen entirely in Polish



   AUTOMATIC MODE
   The full automatic cycle simplifies operation and eliminates the risk of errors during A/C system servicing. In the x568 model, the option to select filling hoses from the menu and the possibility to set the amount of new oil added to equal the amount of recovered used oil have been added. In the automatic mode menu, it is possible to use the database function and the default quantity button.







   MANUAL MODE
   Ability to manually select individual functions in the main menu.
   precise instructions displayed on the screen in Polish guide the operator "by the hand"






   DATABASE OF POPULAR BRANDS
   Contains technical information regarding the amount of refrigerant.
   The station is equipped with an SD card reader for database updates
   ATTENTION! Only original Viaken has Polish language and an up-to-date database




   PRINTER

   The device is equipped with a thermal printer. After the service is completed, it is possible to print a report of the performed actions for the client. Workshop data can be included on the printout.

   Amount of refrigerant filled
   Amount of refrigerant recovered
   Amount of oil introduced
   Filling hoses
   Type of new oil


Construction designed for work:

The station weighs nearly 100 kg, which is the best certificate of its quality. The massive construction dampens compressor vibrations, protecting the sensitive scale, and solid manometers and components guarantee trouble-free operation even during the hottest holiday season.

Technical Specification:

• Refrigerant type: R1234yf (new refrigerant)

• Display: Color touch LCD

• Printer: Thermal (integrated)

• Database: Built-in, covering the latest car models

• Vacuum pump efficiency: 5.4 m³/h (120 l/min)

• Cylinder capacity: 13.6 kg

• Net weight: approx. 95-100 kg

• Power supply: 230V / 50Hz

What do you get in the set?

• Viaken X568 automatic station (R1234yf).

• Set of dedicated hoses and quick couplings for R1234yf refrigerant.

• Power cable.

• Full user manual in Polish.

Elevate the prestige of your service. Invest in the intelligent Viaken X568 R1234yf station and offer your clients the highest quality service their modern cars deserve!
