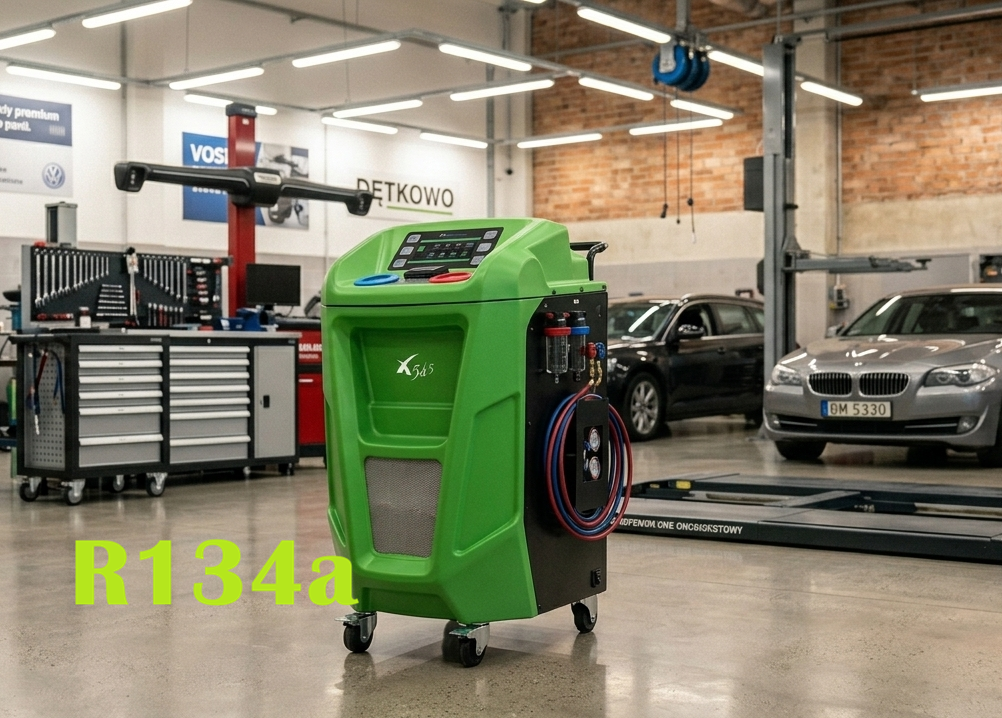

Viaken X545 Automatic Air Conditioning Service Station (R134a)

Maximum efficiency and full automation for your AC service!

The Viaken X545 is a flagship air conditioning station model, designed for services that value time and precision. It is a fully automatic device, meaning the entire process – from refrigerant recovery, through vacuum creation, to system refilling and oil dispensing – occurs without the need for constant operator intervention.

Thanks to the built-in vehicle database and integrated thermal printer, the Viaken X545 not only speeds up work but also enhances the professionalism of your workshop in the eyes of the customer.

Why is the X545 model the best choice?

• Fully Automatic: Program the parameters and return to other tasks. The station will perform recovery, vacuum, leak test, and refilling on its own.

• Vehicle Database: Contains information on refrigerant and oil quantities for most passenger and commercial vehicles – no more searching for data online!

• Thermal Printer as Standard: Immediately after completing the service, you can hand the customer a printout with a report of the performed actions and the amount of refrigerant supplied.

• Menu in Polish: Clear LCD display with an intuitive, Polish interface.

• Solid Polish Brand: The device weighs as much as 90 kg, guaranteeing stability, component durability, and the highest quality of workmanship.

Automatic System Functions:

1. Recovery and Recycling: Automatic refrigerant extraction and purification.

2. Vacuum and Leak Test: Programmable vacuum time with automatic alarm in case of a leak detection.

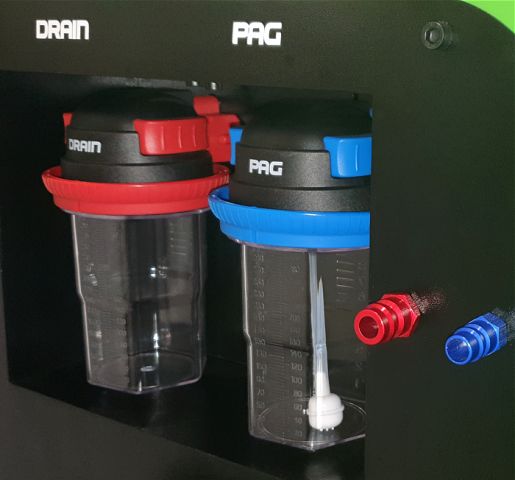

3. Automatic Oil and UV Dye Dispensing: Precise control of solenoid valves (eliminates manual errors).

4. Refilling: Accurate refrigerant charging according to the selected model from the database.

5. System Flushing: Advanced function for cleaning the air conditioning system (requires an optional flushing kit).

What distinguishes Viaken X545 from the competition?

• Three Manometers: Separate gauges for high pressure (HP), low pressure (LP), and internal cylinder pressure.

• Scale Lock: System protecting the sensitive weighing mechanism when moving the station across an uneven workshop floor.

• Deep Filtration: Top-class deacidifying and drying filter system.

• Long Service Hoses: Facilitate work even with large vehicles and machines.

TOUCH SCREEN
Large color touch screen, clear graphical menu and instructions
displayed on the screen entirely in Polish



AUTOMATIC MODE
Full automatic cycle facilitates operation and eliminates the risk of errors during A/C system servicing







MANUAL MODE
Ability to manually select individual functions from the main menu.
precise instructions displayed on the screen in Polish guide the operator "by the hand"



DATABASE OF POPULAR BRANDS
Contains technical information on refrigerant quantities.
The station is equipped with an SD card reader for database updates
NOTE! Only original Viaken has Polish language and an up-to-date database

Technical Specifications:

• Refrigerant type: R134a

• Operating mode: Fully automatic (manual also available)

• Database: Built-in, with update capability

• Printer: Integrated, thermal

• Compressor power: 3/8 HP

• Vacuum pump capacity: 120 l/min (5.4 m³/h)

• Cylinder capacity: 13.6 kg

• Device weight: approx. 90 kg

• Dimensions: 635x585x1075 mm

Set contents:

• Viaken X545 station with printer.

• Set of R134a hoses and quick connectors.

• Power cable.

• User manual in Polish.

Opt for the highest standard of service. The Viaken X545 is a machine that pays for itself faster than you think, saving your time and eliminating the risk of service errors!
