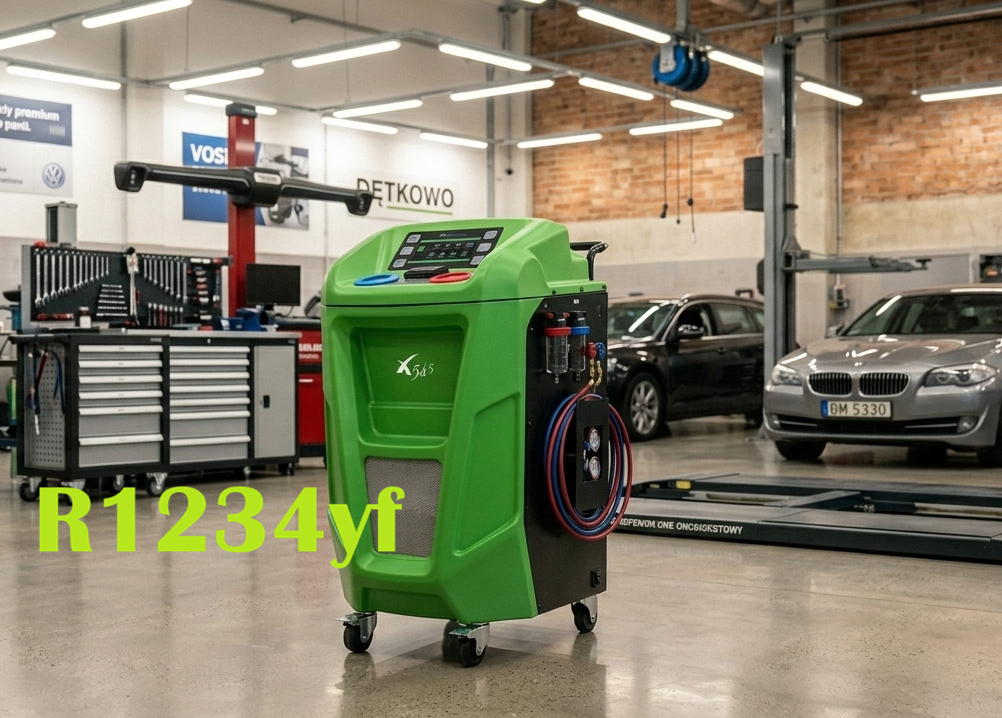

Viaken X545 Automatic AC Station – New Refrigerant R1234yf + Printer

The highest standard of service for modern vehicle fleets in your workshop!

The Viaken X545 in the R1234yf version is a flagship, fully automatic device, designed for professional service of cars manufactured after 2017. If you are looking for a machine that will minimize your effort, eliminate the risk of errors and ensure full service documentation for the customer – this model is for you.

Thanks to the built-in database and report printer, the X545 station transforms AC service into a fast, clean, and completely automated process.

What makes Viaken X545 R1234yf a leader in its class?

• Full Automation: The machine autonomously performs the cycle: recovery, vacuum, leak test, and precise filling. You just connect the hoses and select the car model.

• R1234yf Database: The built-in vehicle list allows for automatic selection of refrigerant and oil quantities – without searching for stickers under the hood.

• Integrated Printer: Build a professional workshop image. After each service, you will receive a printout with a report that you can provide to the customer.

• Polish Language Version: The entire interface and error messages are in Polish.

• Solid Construction (90 kg): This is not a plastic toy. The solid weight of the device guarantees the stability of the precise electronic scale and the longevity of the metal components.

Automatic Functions – Saving Your Time:

1. Refrigerant Recovery: Maximum efficiency thanks to a powerful compressor.

2. Purification: Regeneration of expensive R1234yf refrigerant for reuse.

3. Deep Vacuum: Effective removal of moisture from the system (pump efficiency 120 l/min).

4. Leak Test: Automatic verification under vacuum.

5. Oil and UV Injection: Electronically controlled (solenoid valves), ensuring pharmaceutical precision.

6. Filling: Instantaneous charging of refrigerant into the system.

Advanced Technical Solutions:

• Three Manometers: Full view of HP and LP pressures, as well as internal cylinder pressure.

• Transport Lock: Weight protection, crucial when moving the station around the workshop.

• Premium Service Hoses: Long hoses with professional quick couplings dedicated to R1234yf refrigerant.

• Large LCD Display: Clear menu guiding the operator "step-by-step".

TOUCH SCREEN
Large color touch screen, clear graphical menu and instructions
displayed on the screen entirely in Polish



AUTOMATIC MODE
A full automatic cycle simplifies operation and eliminates the risk of errors during A/C system servicing.






MANUAL MODE
Possibility to manually select individual functions from the main menu.
Precise instructions displayed on the screen in Polish guide the operator "step-by-step".



DATABASE OF POPULAR BRANDS
Contains technical information regarding refrigerant quantities.
The station is equipped with an SD card reader for database updates.
ATTENTION! Only original Viaken has Polish language and an up-to-date database.

Technical Specifications:

• Refrigerant type: R1234yf (new refrigerant)

• Operation: Fully automatic or manual

• Printer: Thermal (built-in)

• Database: Yes, with update capability

• Vacuum pump capacity: 5.4 m³/h (120 l/min)

• Tank capacity: 13.6 kg

• Net weight: 90 kg

• Dimensions: 635x585x1075 mm

Set Contents:

• Viaken X545 automatic station (R1234yf).

• Set of service hoses and R1234yf connectors.

• Power cable.

• User manual in Polish.

Don't let the competition get ahead of you. Choose the fully automatic Viaken X545 diagnostic powerhouse and service the latest cars on the market quickly, reliably, and profitably!
