3.0 TDI Engines and Oil Pressure Problems
Share
The 3.0 TDI engines are one of the most advanced and successful designs of the VAG group.
However, like every German "engineering masterpiece", they also have their weak points.
One of the most frequently discussed topics by tuners and workshop owners is oil pressure – a key parameter influencing the service life of these units.
1️⃣ Low oil pressure in CRT engines - the source of the problem
In older versions of CRTs, oil pressure drops are often observed, especially when the engine is warm and at low revs.
Symptoms:
-
oil pressure indicator light at idle,
-
knocking of bearings,
-
seizure of the crankshaft.
The manufacturer was aware of the problem – in the newer DNA series, the oil pressure maps in the ECU software were improved, which significantly reduced the failure rate.
2️⃣ Electronic oil pressure regulation – technology and risks
The 3.0 TDI engines use an electronically controlled oil pressure control valve .
This solution gives a lot of control, but also means that everything depends on the controller software – the ECU decides what pressure to maintain in a given situation .
In the factory settings, these values are sometimes too low, which shortens the life of the unit.
3️⃣ Software modification – an effective and safe solution
By modifying the oil pressure maps in the ECU, the operating pressure values can be permanently increased , which significantly improves engine lubrication and bearing durability.
In newer DNA models, the manufacturer has done this themselves – we offer a similar solution for earlier CRT units .
As part of the service, we prepare a dedicated ECU file (Stage 1 file) with improved oil pressure maps.
We perform such modification in Bench / Boot mode or remotely for cooperating workshops (B2B).

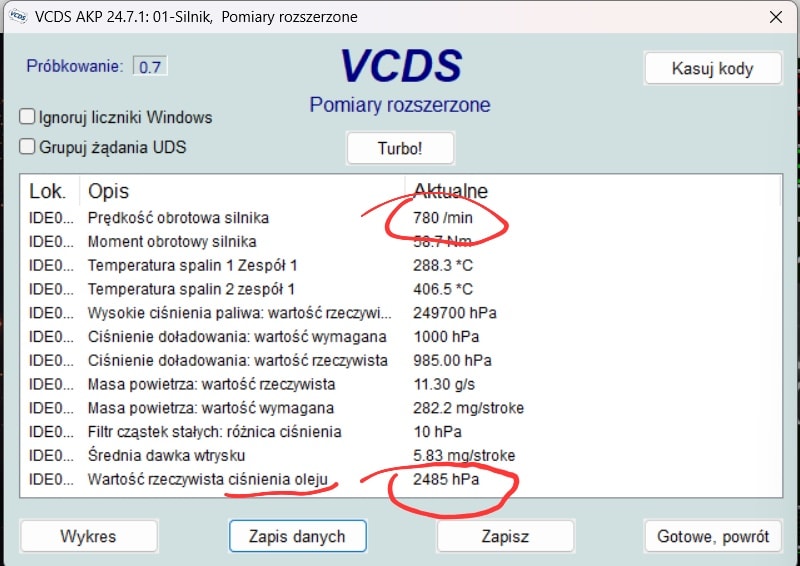

📈 The example log after modification shows:
➡️ At idle and low load – stable ~1.5 bar
➡️ In the working range – increase proportional to the load
4️⃣ Why was the pressure lowered at the factory?
The answer is simple – ecology and exhaust emissions .
The manufacturer reduced the pressure to reduce internal resistance and fuel consumption, which had a minimal impact on CO₂ emissions.
Unfortunately, this "ecological compromise" affected the durability of the crankset and bearings, especially over long distances.
5️⃣ Diagnostics and modification cost
Oil pressure diagnosis is simple – just read it via VCDS / VAS / ODIS .
Modifying pressure maps costs several hundred zlotys , and the result is a significantly longer service life of the unit .
For comparison – replacing a 3.0 TDI engine after seizure can cost up to PLN 40,000–50,000 .
Conclusions and recommendations
🔧 Increasing the oil pressure is one of the most effective preventive measures for 3.0 TDI engines.
Combined with regular oil changes and pressure checks, it can extend the life of the unit by hundreds of thousands of kilometers.
For tuners and workshops
We also perform ECU file modifications for oil pressure – remotely or locally.
If your workshop customers ask about increasing the oil pressure in a 3.0 TDI , you can do it with us .
We work with workshops on a B2B basis, offering:
-
🧩 chiptuning files with oil pressure modifications,
-
⚙️ files for EDC17CP54 / MD1
-
⏱️ fast turnaround time (10–20 minutes),
-
🧠 technical support and reference logs after modification.
Summary
✅ Engines: 3.0 TDI CRT / DNA
✅ Drivers: EDC17CP54
✅ Modification: increasing the oil pressure in the ECU
✅ Goal: durability and stability of the lubrication system
✅ Completion time: approx. 10–20 min
✅ File developed based on professional chip tuning files
